Intro.Measuring Transf.




  ǴԹ Intro.Measuring Transf.

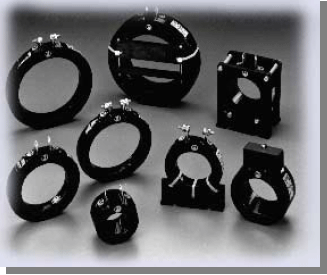

PR Range Measuring Current Tranformers

Features
  Conform to BSEN/IEC 60044-1
  A range of assembly patterns available
   to suit individual requrirements
  Transformers available in 5P or 10P
  accuracy classes and standard accuracy
   limit factors
  Each transformer individually tested
   using standards traceable to N.P.L.
  Test certificates available on request.

                                                              ´

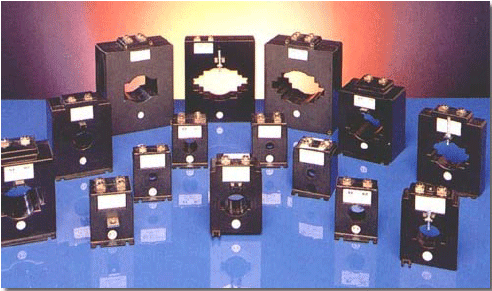

Rectangular  Measuring Current Tranformers

Features
  Conform to BSEN/IEC 60044-1
  Suitable for all application where space is restricted.
  May be supplied with terminals on long or short
   side to suit busbar configuration.
  Available with either spade or M6 terminals
  Each transformer individully tested using
   standard traceable to N.P.L.
   using standards traceable to N.P.L.
  Test certificates available on request.

                                                               ´

 M Range  Measuring Current Tranformers

General
  This compact range of measuring current
   transformers is designed to comply with
   BSEN/IEC60044-1 regulations and follow
   international trends in control gear/
   switchgear design and kilowatt-hour metering.
  The units are clean and uniform in
   Appearance and are entirely enclosed in
   impact and heat resisting housings The
   moulded apertures allow transformers to be
   rapidly and firmly clamped or wedged to

   metric or inch busbars. A-low cost busbar
   fixing device is available, thereby
   eliminating the necessity for costly and

   and complicated mounting anales. All terinal
   fitting are manufactured from plated brass
   and are grooved to ensur excellent
   contact pressure.

M Range Measuring Current Transformers
   are available in accuracy classes ranging
   from 0.2s to and are fully tested using
   modern and highly accurate test equipment

   prior to despatch.

                                                             ´
