  หมวดสินค้า Tachometers

 Model ACT-1B Panel Tachometer

•  The ACT-1B Series Digital Panel Mount/Bench Tachometers are
    used to dis play RPM from a single pulse per revolution ( Model

    ACT-1B ) 10 pulses per revolution ( Model ACT-1B-10 ) or 60
    pulses per revolution ( Model ACT-1B-60 ) The units are powered

    by either 115 or 230 Vac 50/60 Hz or an optional 12 Vdc. The ACT
    1B Series has a Universal Input, accepting input signals from optical
    proximity, magnetic or laser sensors; direct TTL or an extermal AC
    source. The ACT-1B Series is primarily intended for permanent
    panel mount installation, and provides a 5 digit LED display of rota
    tional speed. All connections are made on the rear of the rear
    of the instrument with easily accessible screw terminal connectors.
•  Individual input and output TTL jacks for powering sensors and daisy
   - chaining multiple strobes

•  DB Plus, DA Plus Tachometer mode for speed measurement up to
   200,000 RPM using extemal sensors

•  All digital microprocessor controlled for rock steady. accurate fiash
   rates.
•  Kits include carry case and spare lamp
•  N.I.S.T. Certificate of Calibration included.

                                                                           รายละเอียด

Model ACT-2A Panel Tachometer
MODEL ACT-2A ACT-3A ACT-3
Speed range 5 RPM to 999,990 RPM
Input Frequency Range 0.083 Hz to 250 KHz
Totalizer/Counter 1-99,999 Counts
Input Configuration
Input Voltage Range
Universal inputs:
1 up to 9,999 pulses pr revolution
Front panel push button programable
TTL input and 200 mV to 50V ac signals
Recommended sensor Remote Optical   ROS-5W      Infrared       IRS-5WProximity        PS-11           Laser          ELS-S-5WMagnetic        M-190W       Mag/Amp      MT-190W
Accuracy 0.001% of reading
Resolution

Fixed Range Mode            Auto Range Mode
1 RPM ( 5-99,999 RPM )    Up to 0.0001 RPM
10RPM ( 100,000-999,990 RPM )



0.56 inch high red seven segment LED

Display Update

0.5 second above 120 RPM

Pulse Repeater Output N/A Pulse Repeater Output, 0-5 V TTL compatible
(0.5 millisecond width typical)
Pulses per revolutioequal pulses in per
revolution
RS322C Interface N/A Bi-directional RS232
Analog Outputs N/A Simultaneous Analog Output
Panel programmable as either
high or Low, latching or nolathing
latching. Accuracy ± 0.1% of
setpoint. Hysteresis and low limit
lockout are programmable
Alam Capability N/A Two alarm setpoints, each front
panel programmable as either
high or Low, latching or non-
latching. Accuracy ± 0.1% of
setpoint. Hysteresis and low limit
lockout are programmabl
Alarm Outputs N/A

From C relay contacts, rated 1A
at 115 Vac

Alarm Reset N/A

Automatic or manual reset
programmable from front panel
pushbuttons

Scaling Computation Programable scaling 0.0001 to 999.9
Programmable from front panel pushbuttons
Decimal Point Fixed or auto minimum recall from front
panel pushbuttons
Memory Maximun and minimun recall fron pane
pushbuttons
Dimensions 1/8 DIN by 7" ( 178) deepPanel Cut Out
1.74"(44) Hx 3.58' ( 91 ) W
Input Power Must specify 115V or 220/230/240V
50/60 Hz or 12 Vdc


                                                                           รายละเอียด



Model ACT-3 Panel Tachometer

•  Front panel programmable
The Engine Tachometer is available with 12Vdc, 230Vac or 115 Vac power. The ACT-3 Tachometer offers all the required output options available for easy interfacing to your data acquisition systems. Outputs include: 4-20 mA, 0-5V, TTL pulse, two alarm set points and an RS232C bi-directional serial interface. The analog outputs offer 12 bit resolution which can provide extremely accurate and repeatable readings. The operating range of the ACT-3 Tachometer is 5-999,990 RPM with an accuracy of 0.0015% + 1RPM.













                                                                           รายละเอียด

Pocket Laser Tach 200

•  The compact and versatile Pocket-Tachs are ideally are ideally
    suited for non-contact contact and linear speed measurements.

    Pocket Laser Tach 200 ( PLT200 ) is a gigital battery-Powered
    Portable optical tachometer, which operates up to 25 fett from

    a reflective target usins a laser light source. The ergonomic design
    allows safe. direct ine-of sight viewing of both the target and
    the display at the same time, while providing a non-slip rurface for
    singlehand operation
Multi-Function
•   PLT200 is a 32 function Tachometer/Rtemeter, Totalizer/Counter
    Timer( stopwatch ) which is programmable in both English and
    Metric rates. Support is built- in for both our optional Remote
    Sensors PLT200 has a TTL compatible Output to trigger devices

    like data collectors or stroboscopes. The KIT is supplied complete
    with a Remote Contact Assembly including concave and convex

    tips and a 10 cm linear speed wheel all in am latching carrying case

                                                                          รายละเอียด

Phasar-Laser Tach Series

•  Phasar-Laser combines the accuracy and safety of a non-contact
   optical tachometer with the convenience and ease of operation of

   a pistol grip instrument, housed in a pistol grip instrument, housed
   in a rugged steel enclosure The tachometer provides a convenient

   visible red laser for easy targeting along with a latching trigger for
   hand held operation and a mounting bushing for tripod mounted
   use.
•  Phasar-Laser-R provides for optional sensor for difficult to reach
   locations in addition to the standard internal measurement optics.
Features
•  Convenient pistol grip design
•  Rugged steel enclosure
•  Safe non-contact operation to 10 feet ( 3 m ) and 45 degrees
   from reflective tape
•  On-target and low hattery indicators
•  Last measurement memory

                                                                           รายละเอียด

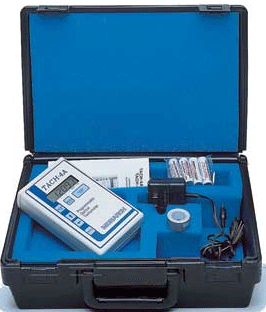

Tach-4A Portable Precision Tachometer

•  Tach-4A innovated the combination of a high accuracy, range
   Tacometer, multi-function Totalizer/Counter and timer ( Stopwatch)

   in one versatile instrument Tach-4A is the word's most accurate
   portable tachometer providing resolution of up to 0.0001 RPM.

   Safe non-contact operation up to 36 inches ( 91.44cm ) and
±45°
   from perpendicular on a reflective tape target

•  Tach-4A is menu programmable from a six button membrane keypad.
   A unique scaling feature allows triggering from one or multiple

   pulses per revolution as a tachometer, ratemter and totalizer/
   counter displaying data engineering units.

•  Tach-4AR is available with remote sensing capability. Remote
   sensing capability capability. Remote sensors may be optical infrared
   magnetic or laser. See Page 7 for optional sensors. The optional
   0-5V TTL compatible Pulse Output ( PO ) is supplied with a cable
   for BNC interface to data acquistion equipment

                                                                          รายละเอียด
