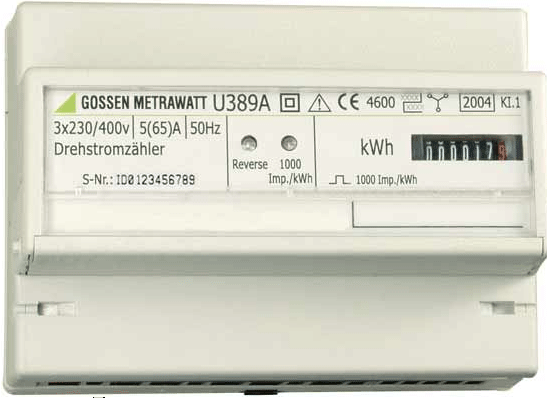

Acquires active energy •
Pulse output ( SO ) for energy import •
Electrical connection with reversed polarity is indicated by
means of an LED •
Direct connection or via transformer •
7- gigit drum-type counter mechanism • Can
be installed in any position •
Compact dimensions •
Rugged design •
DIN rail mounting per EN 50022
•
Active energy measurement ( import ) per EN 61036, Class1
with electronic anti-reversing •
Can be expanded for additional measured mains quantities •
Can be expanded for additional measured mains quantities •
Direct 5 (65) A connection without additional current
Transformers • Export
variant available for 60 hz line frequency •
Displays installation errors without additional measuring equipment •
SO pulse output or 230V, adjustable pulse rate and pulse duration •
Label field for individualized identification •
Meter readinges can optionally viewed when the electrical is switched off •
Meter readings can be optionlly viewed when the electrical
circuit is switched off •
Minimal space requirements thanks to compact design •
Mounts to DIN rail EN 50022 • Type
approval: PTB, metes, DZNM
•

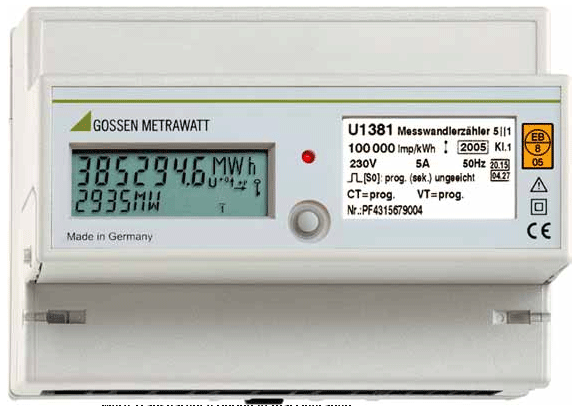

Active energy measurement ( import ) per EN 61036, Class1
with electronic anti-reversing •
Instantaneous power for the evaluation of momentary circuit loads •
Can be expanded for additional measured mains quantities •
Transformer connection 5//1, adjustable, calibratable
transformation rations • Export
variant available for 60 Hz line frequency •
Displays installation errors without additional measuring equipment •
SO pulse output or 230V, adjustable pulse rate and pulse duration •
Label field for individualized identification •
Meter readinges can optionally viewed when the electrical is switched off
•
Minimal space requirements thanks to compact design •
Mounts to DIN rail EN 50022
• Type approval: PTB, metes, DZNM
• Active
energy measurement ( import ) per EN 61036, Class1
with electronic anti-reversing •
Instantaneous power for the evaluation of momentary circuit loads •
Can be expanded for additional measured mains quantities • Direct
5 ( 65 ) A connection without additional current transformers • Export
variant available for 60 Hz line frequency •
Displays installation errors without additional measuring equipment • SO
pulse output or 230V, adjustable pulse rate and pulse duration • Label
field for individualized identification • Meter
readinges can optionally viewed when the electrical is switched off
• Minimal space requirements thanks to compact design • Mounts to
DIN rail EN 50022
• Type approval: PTB, metes, DZNM
•

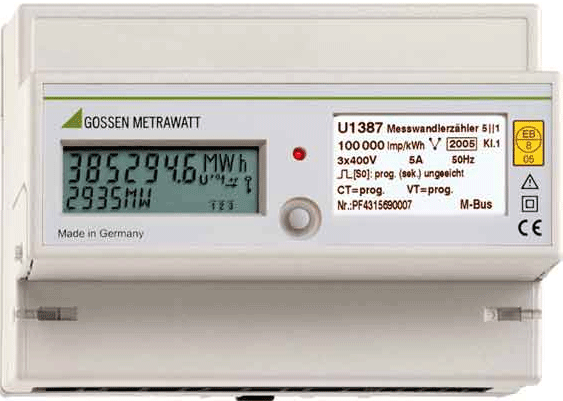

Active energy measurement ( import ) per EN 61036, Class1
with electronic anti-reversing •
Instantaneous power for the evaluation of momentary circuit loads •
Can be expanded for additional measured mains quantities •
5//1 transformer connection, adjustable transformation ratios • Export
variant available for 60 hz line frequency •
Displays installation errors without additional measuring equipment •
SO pulse output or 230V, adjustable pulse rate and pulse duration •
Label field for individualized identification •
Meter readinges can optionally viewed when the electrical is switched off •
Meter readings can be optionlly viewed when the electrical
circuit is switched off
•
Minimal space requirements thanks to compact design •
Mounts to DIN rail EN 50022
• Type
approval: PTB, metes, DZNM • LON
interface with FTT-10A transceiver ( W1 ) • M-bus
interface per EN 1434-3 ( W2 ) • L-bus
interface for battery operated HYDRD-RADIO 868 radio
module ( W3 )
• Calibrated main display for primary energy. transformation ration
specified with the order can be fixed ( Q9 ) and official energy
and a fixed pulse rate of 1000 pulses per kWh ( V1, V3 )
•

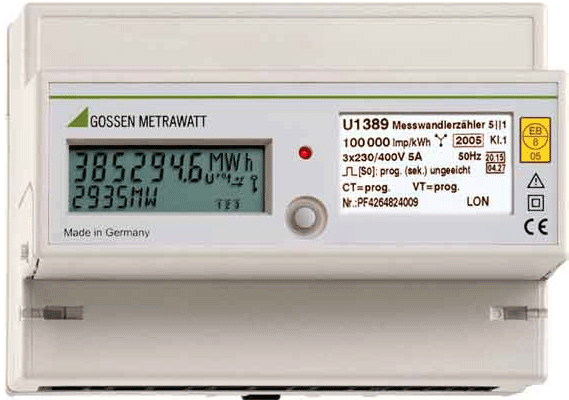

Active energy measurement ( import ) per EN 61036, Class1
with electronic anti-reversing •
Instantaneous power for the evaluation of momentary circuit loads •
Can be expanded for additional measured mains quantities •
5//1 transformer connection, adjustable transformation ratios • Export
variant available for 60 hz line frequency •
Displays installation errors without additional measuring equipment •
SO pulse output or 230V, adjustable pulse rate and pulse duration •
Label field for individualized identification •
Meter readinges can optionally viewed when the electrical is switched off •
Meter readings can be optionlly viewed when the electrical
circuit is switched off
•
Minimal space requirements thanks to compact design •
Mounts to DIN rail EN 50022
• Type
approval: PTB, metes, DZNM • LON
interface with FTT-10A transceiver ( W1 ) • M-bus
interface per EN 1434-3 ( W2 ) • L-bus
interface for battery operated HYDRD-RADIO 868 radio
module ( W3 )
• Calibrated main display for primary energy. transformation ration
specified with the order can be fixed ( Q9 ) and official energy
and a fixed pulse rate of 1000 pulses per kWh ( V1, V3 )
•

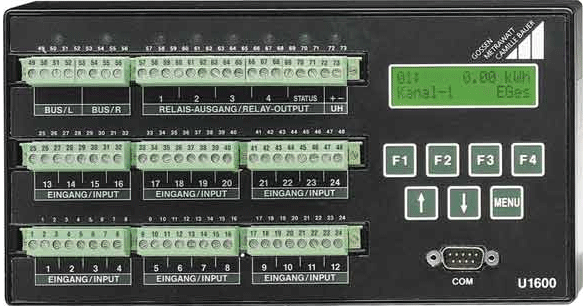

32 processing channels for the determination of energy, power
costs based upon input pulses •
Energy Control Language for analysis programing, monitoring
and optimization •
24 input for the processing of SO pulses and digital conditions •
4 relay
outputs for controlling external Processes •
Two RS 232 interfaces ( 19.2 kBit/s ) for connecting PC, modem
printer and controlled clock •
Two ECS LAN interfaces for interconnection of individual
summators over great distances
•

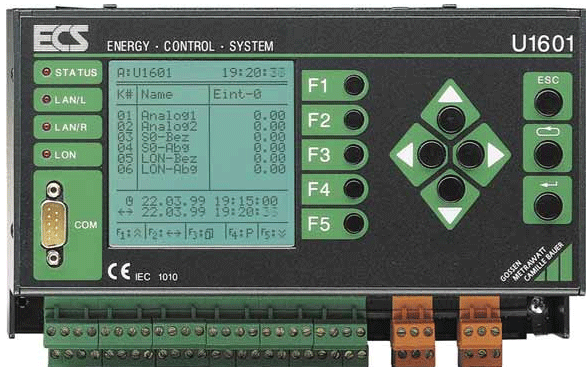

64 processing channels
physical inputs or LON meter outputs can be assigned
for the calculation of energy, power and costs
•
Energy Control Language
for the programming of analysis
monitoring and optimization applications •12
universal inputs:±20mA,±10V,
SO pulse •LON interface for 63 LON devices •
2 analog ouputs:±20
mA or ±10V •2
relays and MOS switches for the control of external processes • 2 RS232 interfaces ( 115 kBit/s )
for the connection of PC, modem, printer or radio-controlled
clock • 2
ECS LAN interfaces •
for the interconnection of individual summators over large
distances • Simple
software updates via serial interface ( Flash )
•

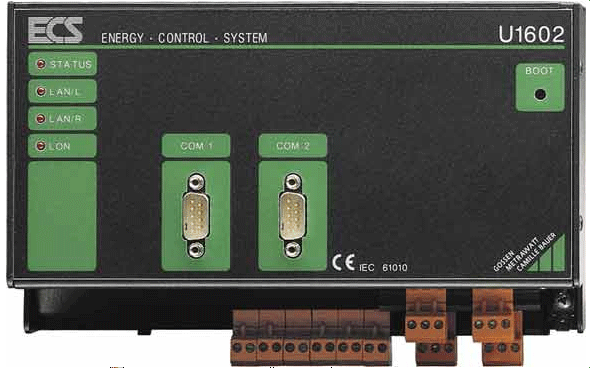

64 processing channels
physical inputs or LON meter outputs can be assigned
for the calculation of energy, power and costs
•
Energy Control Language
for the programming of analysis
monitoring and optimization applications •LON interface for 63 LON devices •
Two RS 232 interfaces ( 115 kBit/s )
for connection to PC, modem, printer or
radio-controlled clock • Two
ECS LAN interfaces
for the linking of individual summators over great distances •
Simple software update via serial interface ( Flash )
•

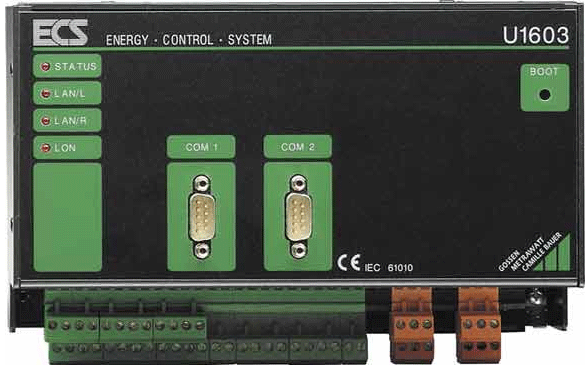

64 processing channels
physical inputs or LON meter outputs can be assigned
for the calculation of energy, power and costs
•
Energy Control Language
for the programming of analysis
monitoring and optimization applications •LON interface for 63 LON devices •
Two RS 232 interfaces ( 115 kBit/s )
for connection to PC, modem, printer or
radio-controlled clock • Two
ECS LAN interfaces
for the linking of individual summators over great distances •
Simple software update via serial interface ( Flash ) • 6
universal inputs:
± 5 mA, ± 20mA, ±10V, SO pulse •2
analog outputs:±20mA or
±10V • 2
relays and 4 MOS switches for controlling external processes
