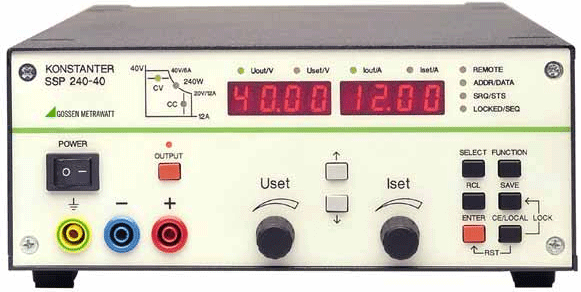

Computer Controlled SSP-KONSTANTER 120,240 and 320

Wide range of functions
Comprehensive calibration report
Minimal power loss
Auto-ranging output with 120,240 or 320 W
Voltage and current regulated output
Increased output power for brief intermittent periods
 Very short response time thanks to BET technology
Dynamic sink mode operation
Excellent dvnamic control parameters
Minimal residual ripple
Output ON/OFF functuion
Lockable control elements
Master-slave operation with parallel or series connection
Sequence controls for the generation of voltage and
  current sequences
Protection against overvoltage, overcurrent and excessive
  temperature
Calibration procedure for menu-driven balancing
RS 232 interface ( complete device operation )/analog interface
Floating output terminals at front and rear panel
Can be electrically and mechanically combined with multi
   output devices

  Options:
IEEE 488 interface
Driver software Lab VIEW, LabWindows and HP VEE

                                                                   ´       Manual

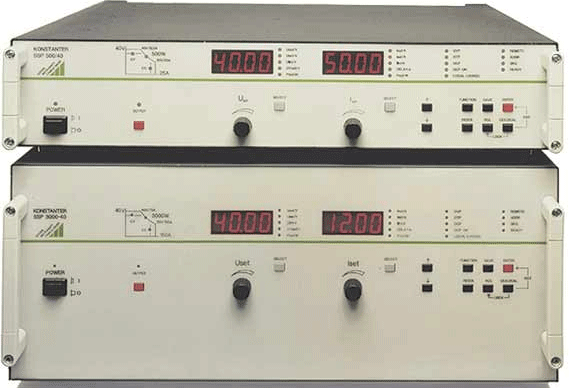

SSP-KONSTANTER 500,1000,2000 amd 3000

Wide range of functions, minimal power loss
Auto-ranging output with 500,1000,2000 or 3000 W
Volage and current regulated output
Increased output power for brief in termittent periods
Very short response times thanks to special circuitry
Dynamic sink mode operation
 Excellent dynamic control parameters
Minimal residual ripple
Output ON/OFF function
Lockable control elements
Sequence controls for the generation of volage and current
  sequences

Master-slave operation with parallel or series connection
Protection against overvoltage, overcurrnet and excessive
  temperature
Analog interface

  Options:
RS 232 and IEEE 488 interfaces ( with measurement value
  querying )
Driver software for LabVIEW, LabWindown and HP VEE

                                                                   ´       Manual

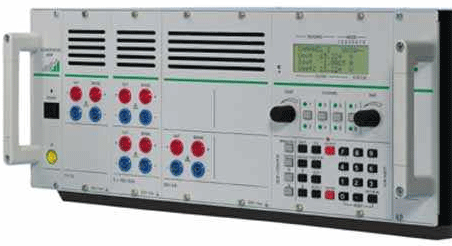

MSP- KONSTANTER

Up to 8 independent, electrically isolated outputs
All outputs can be used as electronic loade as well
Minimal residual ripple and short response times
Output ON/OFF function
Outputs can be activated and deactivated individually
   or in groupd
Measuring function for voltage, current and power with storage
  of extreme values
Online help available in various languages by simply pressing key
IEEE 488 and RS 232 interfaces
Easy, flexible device configuration


                 ´       Manual

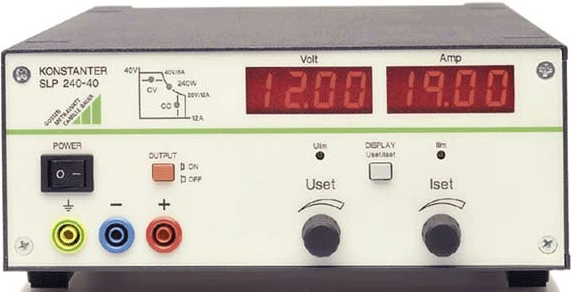

Analog Interface SLP-KONS 120,240 and 320

Compact design and minimal weight
Auto-ranging output with 120,240 or 320 W
Minimal power loss
Auto-ranging output with 120,240 or 320 W
Voltage and current regulated output
Increased output power for brief intermittent periods
 Very short response time thanks to BET technology
Dynamic sink mode operation
Excellent dvnamic control parameters
Minimal residual ripple
Output ON/OFF functuion
Manual adiustment with ten-turn potentiometer
Remote sensing
Master-slave operation with parallel or series connection
Protection against  excessive temperature
Floating output terminals at front and rear panel
Can be electrically and mechanically combined with multi-output
  devices
Mounting accessories for 19" racks

                                                                    ´       Manual

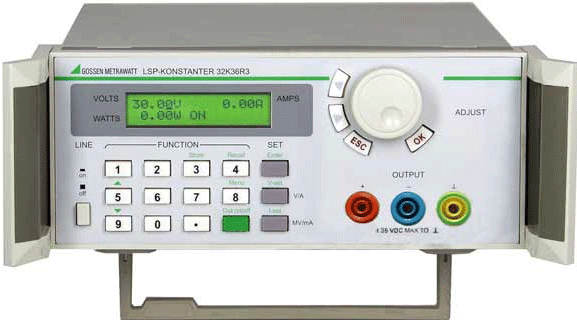

Linear controlled LSP 32K Series

Floating output
Safe electrical separation
Output can be switched on and off
Voltage and current regulating ( square wave )
Rotary encoders for adjusting voltage and current
 Adiustment is also possible with keys
Multifunctional LCD
Setup memory for 10 device settings
Protective functions
Attractive desing, benchtop instrument, suitable for mounting
  to a 19" rack

                                                                   ´        Manual

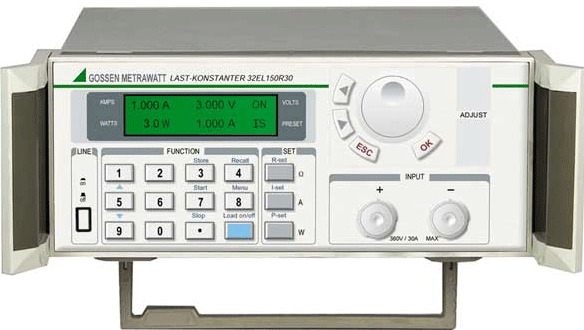

SSL Electronic load series 32EL NEW

Floating output
Safe electrical separation
Output can be switched on and off
Voltage and current regulating ( square wave )
Rotary encoders for adjusting voltage and current
 Adiustment is also possible with keys
Multifunctional LCD
Setup memory for device settings, load profile
Protective function, e.g. adjustable power limiter
Attractive design, benchtop instrument, suitable for mounting
  to a 19" rack

Accessories
Computer control via RS323 or RS485 interface possible

                                                                                     ´

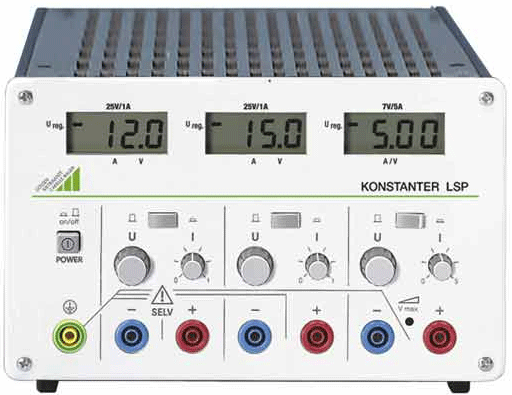

Analog Interface LSP 33K Series

SEL V ( safety extra-low voltage )
Three mutually isolated outputs ( at the front panel )
Constant voltage and constant current operation
Extremely minimal residual ripple
Accurate, infinite adjustment of output voltage and current
 Analog interface ( for remote control )
Outputs can be connected for parallel or series operation
Master-slave operation
Tracking operation
Rugged metal housing with carrying handle, suitable for
  rack-mounting

                                                                                     ´
