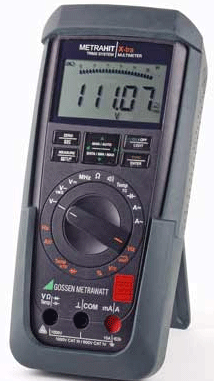

METRA Hit X - TRA

Resolution:± 12,000 digits, 4½ place
3 connector jacks with patented automatic blocking sockets ( ABS )
Voltage measurement with a basic accuracy of
± 0.05% ( V DC )
Aoto-range current measurement from 1A to A ( 16A ) via a single
  connectorjack and a single fuse
Large, light-blue illuminated display with extra large characters
  ( 15 mm ) and a analog ber graph for dynamic processes
Separate battery and fuse compartments
IP 52 protection against dust and water
Measuring categories: 1000V CAT III and 600V CAT IV
Made in Germany
Furnished with DKD calibration certificate
23 Multimeter functions
Voltage ACTRMS, Voltage AC+DC TRMS voltage DC frequency (HZ ),keying ratio,

   resistance diode test, continuity test, capacitance, current ACTRMS
   current AC+DCTRMS  temperature with type K thermocouples
Additional filter function and voltage measurement with reduced

   input impedance for  interference. for example when performing
   measurements at frequency converters
4 MB data memory as data logger for long for long-term measurement
Power pack connector socket for opertion without batteries
Infrared inferface for communication with the PC
Protective rubber cover safeguards against shocks and impacts
                                                                                                                                                                         ´       Manual

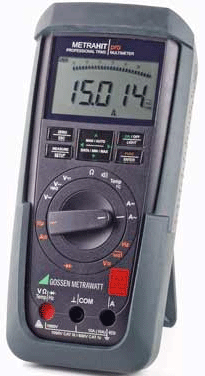

METRA Hit PRO

Resolution:± 12,000 digits, 4½ place
3 connector jacks with patented automatic blocking sockets ( ABS )
Voltage measurement with a basic accuracy of
± 0.05% ( V DC )
Aoto-range current measurement from 1A to A ( 16A ) via a single
   connectorjack and a single fuse
Large, light-blue illuminated display with extra large characters
  ( 15 mm ) and a analog ber graph for dynamic processes
Separate battery and fuse compartments
IP 52 protection against dust and water
Measuring categories: 1000V CAT III and 600V CAT IV
Made in Germany
Furnished with DKD calibration certificate
16 Multimeter functions
Voltage ACTRMS, Voltage AC+DC TRMS voltage DC frequency (HZ ),keying ratio,
   resistance diode test, continuity test, capacitance, current ACTRMS

   current   AC+DC TRMS  temperature with type K thermocouples
Additional filter function and voltage measurement with reduced input

   impedance for interference. for example when performing measurements
   at frequency converters
                                                                                                                                                                          ´      Manual

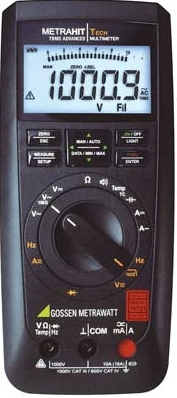

METRA Hit TECH

Alternating voltage TRMS - Direct voltage - AC+DC voltage
Alternating voltage TRMS - Direct voltage - AC+DC current TRMS
Frequency ( Hz via voltage and current )

Temperature measurement with type K thermcouples
  Capacitance - continuity testing - diode testing - resistance
Addptionally adjustable transformation ratio for connecting current

  sensors and transformerswith voltage or current output
Additional filter function and voltage measurement with reduced input

  impedance for limiting in terference,e.g. when performing measurements
  at frequency convers
DKD calibration certificate included ad standard feature
Manufacturer's guarantee: 3 years material and workmanship, 1 to 3 years

  for calibration depending upon application

                                                                                                                                                                         ´       Manual

METRA Hit BASE

Resolution:± 12,000 digits, 4½ place
3 connector jacks with patented automatic blocking sockets ( ABS )
Voltage measurement with a basic accuracy of
± 0.05% ( V DC )
Aoto-range current measurement from 1A to A ( 16A ) via a single
   connectorjack and a single fuse
Large, light-blue illuminated display with extra large characters
  ( 15 mm ) and a analog ber graph for dynamic processes
Separate battery and fuse compartments
IP 52 protection against dust and water
Measuring categories: 1000V CAT III and 600V CAT IV
Made in Germany
Furnished with DKD calibration certificate
12 Multimeter functions
Voltage ACTRMS, Voltage AC+DC TRMS voltage DC frequency (HZ ),keying ratio,
   resistance diode test, continuity test, current TRMS via additional current

   sensors with voltage output adjustable clip parameters, temperature with
   type K thermocouples

                                                                                       ´      Manual

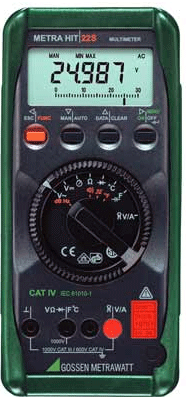

METRA Hit 22S

Anzeige+/-30,000 digits; Basisabweichung 0,05% vom Messwer+3 Digital
Messfunktionen:300 mV-1000V; 300 Ω-30MΩ; 3 nF-30mF;dBV;Hz

°CF ( mit optionalem Temperatursensor Pt100/Pt1000
Stoppuhr 100ms-100 ms-100 min uber tasten bedienber
  mA-AAC uber zesatzlichen Stromsensor WZ12C mit mV-Ausgang
Min-/Max-Messwertspeicherung, DATA-Hold
Duchgang-und Diodentest
Frequenz-und Impulsgenerator 1 Hz - 1 kHz
automatissche Bereichswahl und Batterieabschaltung
patentierte, Automatische BuchsenSperre ABS, patentierte
  IR-Dtenschnittstelle
Softwareoption METRAwin 10
600V CAT.IV bzw. 1000V CAT .ll gemmab IEC 610010-1


                                                                                       ´      Manual

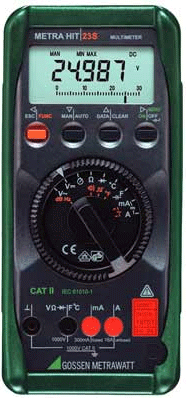

METRA Hit 23S

Anzeige+/-30,000 digits; Basisabweichung 0,05% vom Messwer+3 Digital
Messfunktionen:300 mV-1000V; 300 Ω-30MΩ; 3 nF-30mF;dBV;Hz

°CF ( mit optionalem Temperatursensor Pt100/Pt1000
Stoppuhr 100ms-100 ms-100 min uber tasten bedienber
  mA-AAC uber zesatzlichen Stromsensor WZ12C mit mV-Ausgang
Min-/Max-Messwertspeicherung, DATA-Hold
Duchgang-und Diodentest, Frequenz-und lmpulsgenerator 1Hz - 1kHz
automatissche Bereichswahl und Batterieabschaltung
mA-Hochstromsicherung, Nennspannung 1000 V
patentierte, Automatische BuchsenSperre ABS, patentierte
  IR-Dtenschnittstelle

erweiterte AAC uber zusatzlichen Stromwandler mit mA-Ausgang
Softwareoption METRAwin 10
1000V CAT. lll gemab IEC 61010-1


                                                                                     ´       Manual

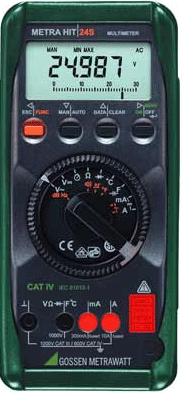

METRA Hit 24S

Anzeige+/-30,000 digits; Basisabweichung 0,05% vom Messwer+3 Digital
Messfunktionen:300 mV-1000V; 300 Ω-30MΩ; 3 nF-30mF;dBV;Hz

°CF ( mit optionalem Temperatursensor Pt100/Pt1000
Stoppuhr 100ms-100 ms-100 min uber tasten bedienber
  mA-AAC uber zesatzlichen Stromsensor WZ12C mit mV-Ausgang
Min-/Max-Messwertspeicherung, DATA-Hold
Duchgang-und Diodentest, Frequenz-und lmpulsgenerator 1Hz - 1kHz
automatissche Bereichswahl und Batterieabschaltung
mA-Hochstromsicherung, Nennspannung 1000 V
patentierte, Automatische BuchsenSperre ABS, patentierte
  IR-Dtenschnittstelle

integrierte Quatzuhr, Gummischutzhulle, DKD-Kalibrierzertifikat
erweiterte AAC uber zusatzlichen Stromwandler mit mA-Ausgang
Softwareoption METRAwin 10
600V CAT. IV bzw. 1000 V CAT. lll gemab IEc 61010-1


                                                                                    ´        Manual

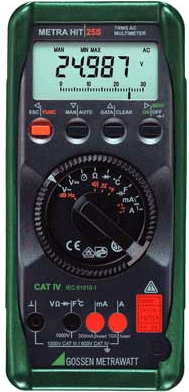

METRA Hit 25S

Anzeige+/-30,000 digits; Basisabweichung 0,05% vom Messwer+3 Digital
Messfunktionen:300 mV-1000V; 300 Ω-30MΩ; 3 nF-30mF;dBV;Hz

°CF ( mit optionalem Temperatursensor Pt100/Pt1000
Stoppuhr 100ms-100 ms-100 min uber tasten bedienber
  mA-AAC uber zesatzlichen Stromsensor WZ12C mit mV-Ausgang
Min-/Max-Messwertspeicherung, DATA-Hold
Duchgang-und Diodentest

Frequenz-und Impulsgenerator 1 Hz - 1 kHz
automatissche Bereichswahl und Batterieabschaltung
Hochstromsicherung mit  Nennspannung 1000 V
patentierte, Automatische BuchsenSperre ABS, patentierte
  IR-Dtenschnittstelle

integrierte Quatzuhr, Gummischutzhulle, DKD-Kalibrierzertifikat
erweiterte AAC uber zusatzlichen Stromwandler mit mA-Ausgang
Softwareoption METRAwin 10
600V CAT. lV bzw. 1000 V CAT.lll gemab IEC 61010-1


                                                                                      ´       Manual

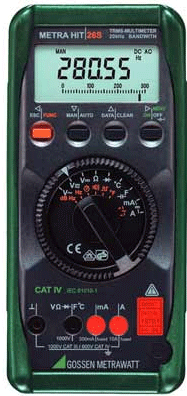

METRA Hit 26S

Anzeige+/-30,000 digits; Basisabweichung 0,05% vom Messwer+3 Digital
Messfunktionen:300 mV-1000V; 300 Ω-30MΩ; 3 nF-30mF;dBV;Hz

°CF ( mit optionalem Temperatursensor Pt100/Pt1000
Stoppuhr 100ms-100 ms-100 min uber tasten bedienber
  mA-AAC uber zesatzlichen Stromsensor WZ12C mit mV-Ausgang
Min-/Max-Messwertspeicherung, DATA-Hold
Duchgang-und Diodentest

Frequenz-und Impulsgenerator 1 Hz - 1 kHz
automatissche Bereichswahl und Batterieabschaltung
Hochstromsicherung mit  Nennspannung 1000 V
patentierte, Automatische BuchsenSperre ABS, patentierte
  IR-Dtenschnittstelle

integrierte Quatzuhr, Gummischutzhulle, DKD-Kalibrierzertifikat
erweiterte AAC uber zusatzlichen Stromwandler mit mA-Ausgang
Softwareoption METRAwin 10
600V CAT. lV bzw. 1000 V CAT.lll gemab IEC 61010-1


                                                                                      ´       Manual

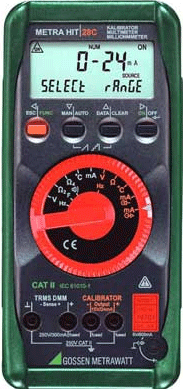

METRA Hit 28C

Universeller Kalibrator und Simulator mA/mV...V/°C(Pt100/1000
  Ni100/1000 ), Thermoelement J,L,T,U,K,E,S,R,B,N )/30...2000Ω
Dualmode-gleichzeitiges Geben und Messen ( U/I )

Absolut und prozentual ( skaliert messen und geben
Speicher fur Kalibrierprozedura und- resultate
Frequenz und  lmpulsgruppengeber; Rampen und Treppenfunktionen
Schnittstelle und Kalibriersoftware METRAwin 90
Transmittersimulator ( Senke 0 ... 24 mA )
DKD-Kallbierzertifikat im Lieferumfang; Robuster und EMV-sicherer Aufbau
Prazisionsmultimeter(V,A,Ω,F,Hz,
°CF)300.000 Digits und Dreifachanzeige
Milliohmmeter 4-Leitermessung mit 0,01 mΩ Auflosung ( gis 30,00Ω)

Abmessungen:84mm x 185 mmx35mm;Gewich: 0,42 kg mit Batterien
Batterien: 3 x 1,5V IEC LR 6 ( mignon, AA )


                                                                                      ´       Manual

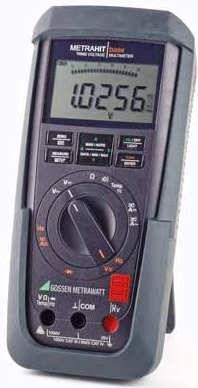

METRAHit 30M

Display:+/-1200 000 digits
Inherent deviation: +/-(35 ppm of reading + 70 ppm )
Measuring functions: 120mV-600VDCand TRMSAC+DC
  bandwidth 16Hz, 120uA-120mA, 1200hm-12MOhm, Hz,
°C/°F
  ( Pt100,Pt1000,J,K )
MIN-MAX recording

Automatic range selaction and battery cutoff
Heavy-duty fuses with 1000 V nominal voltage
Integrated, 128 kB measurement data memory, 0.1s to 10 min

  sampling period

IR data interface
Protective rubber holster
DKD calibration certificate

CAT.III @ 300V or CAT. II @ 600V per IEC 61010-1

                                                                                      ´       Manual

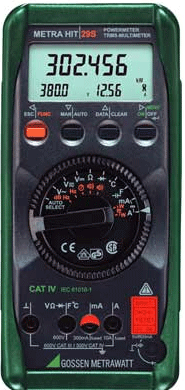

METRAHit 29S

METRA HIT 28S and 29S
300,000 digits and triple display
Precision multimeter ( V,dB,A,Ω,F,Hz,F,
°CF,V + )
Direct current measurement ( to 10A ) or via ( clip-on) current

  transformer: A transformation ration of 1000:1 or 10,000:1is
  accounted for by the display

Quartz movement for Min-Max recording relative to real-time
AUTO SELECT
  Aotomatic recognition of measured quantities ( V,Ω and F )

Connector jack for external power pack

METRA HIT 29S
Power and energy measurement ( W,Var,VA,Wh<Varh,PF )
  with analog signals or pllse-type energy measurement

  display of momentary measured values, mean values and
  peak power values
Power disturbance recording
Lar measurement data memory for up to 60,000 measured values



                                                                                     ´        Manual

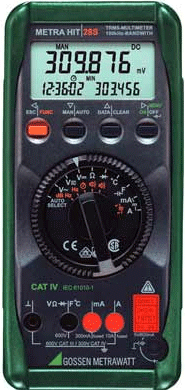

METRAHit 28S

METRA HIT 28S and 29S
300,000 digits and triple display
Precision multimeter ( V,dB,A,Ω,F,Hz,F,
°CF,V + )
Direct current measurement ( to 10A ) or via ( clip-on) current

  transformer: A transformation ration of 1000:1 or 10,000:1is
  accounted for by the display

Quartz movement for Min-Max recording relative to real-time
AUTO SELECT
  Aotomatic recognition of measured quantities ( V,Ω and F )

Connector jack for external power pack



                                                                                      ´       Manua

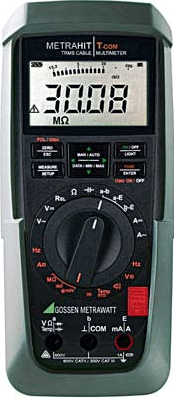

METRA Hit T- COM

Insulation resistance measurement ( test voltage: 100V ) with
  simultaneous recognition of interference voltage as well as

  polarity reversal for diode testing

Cable symmetry testing with rapid changeover switching
Multifunal multimeter ( V,Ω,F,Hz )
TRMS measurement, AC and AC+DC for current and voltage
Low-pass fillter can be activated (200Hz/-3 dB )
Direct current measurement, 100 mA to 1A
Precision temperature indication in
°C and °F for Pt100/Pt1000
Display:3¾ place, 3100 digits, illumination can be activated
  analog display: lineal or logarithmic for insulation measurement
Acoustic sibnals for: Continuity testing, dangerous contact
  voltages, exceeded overload limits
Min-Max value storage
Data memory and internal clock, power pack adapter socket

Housing with IP 54 protection, dust and splash protected
  protective rubber cover as standard feature
Bidirectional infrared interface for exchanging data with a PC
Windows software available as accessory for processing and
   graphic display of measured values via RS 232 interface
New housing design, separate battery and fuse compartments,

  intelligent key functions with SMD button

                                                                                      ´       Manual

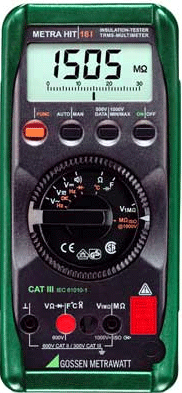

METRA Hit 16I

Robustes Digitalmultimeter ±3100 Digits, mit Analoganzeige
Automatische BuchsenSperre ABS ( patentiert ) IR-Interface

VDC, VAC/DC VAC,Ω, °C ( mit optionalem Temperatursensor Pt100/Pt1000 )
Durchgange-und Diodentest
Min-Max-Messwertspeicherung, DAT-Hold
geringe Eigenabweichung
±(0,25% + 1Digit bei VDC )
mit Kabelset, Gummischutzhulle und DKD-Kalibrierzertifikat
METRAHit 16I-Set 1 : Messkoffer mit lsolationsmessgerat und Multimeter
  einschlieblich Batterie,Gummi-Schutzhulle und Tragriemen GH18, DKD-

  Kalibrierzertifikat und Temperaturfuhler TF220
METRAHit 16I-Set 2 : Messkoffer mit lsolationsmessgerat
  und Multimeter einschlieblich Kabelset, Batterie, Gummi  Schutzhulle
  und Tragriemen GH18, DKD-Kalibrierzertifikat, Zangenstromsensor
  WZ12B und Temperaturfuhler TF220

                                                                                      ´       Manual

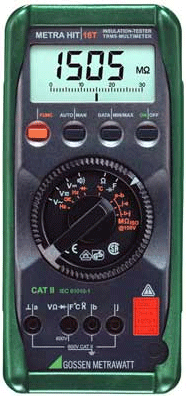

METRA Hit 16T

Robustes Digitalmultimeter ±3100 Digits, mit Analoganzeige
Automatische BuchsenSperre ABS ( patentiert ) IR-Interface

VDC, VAC/DC VAC,Ω, °C ( mit optionalem Temperatursensor Pt100/Pt1000 )
Durchgange-und Diodentest
Min-Max-Messwertspeicherung, DAT-Hold
geringe Eigenabweichung
±(0,25% + 1Digit bei VDC )
mit Kabelset, Gummischutzhulle und DKD-Kalibrierzertifikat




                                                                                     ´        Manua

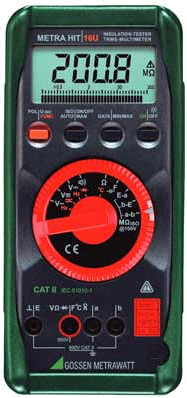

METRA Hit 16U

Insulation resistance measurement ( test voltage: 100V ) with
  simultaneous recognition of interference voltage as well as

  polarity reversal for diode testing

Cable symmetry testing with rapid changeover switching
Multifunal multimeter ( V,Ω,F,Hz )
AC and AC+DC TRMS measurement
Scaled current measurement from 10mA to 100A
  with accessory clip-on current sensor

Precision temperature meter
°CF for Pt100 and Pt1000 senors
Display illumination can or logarithmic for insulation measurement
Acoustic signals for
  - Continuity testing
  - Dangerous contact voltages
  - Violation of overload limits
Storage of min/max values

Housing in IP54, protective rubber cover as standard equipment
  protective rubber cover as standard feature
Bidirectional infrared interface for exchanging data with a PC
Windows software available as accessory for processing and
   graphic display of measured values via RS 232 interface

                                                                                      ´       Manual

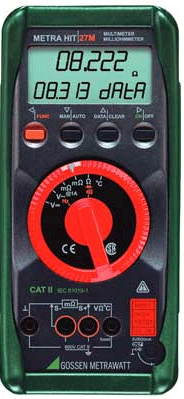

METRAHit 27 M

Milliohmmeter
  3.000 mOhm to 300.00 mOhm with 1A measuring current and
  30.00 mOhm to 30.00 Ohm with 200mA measuring current
Kelvin connection ( 4-wire measurement )
Resistance measurement from 300 Ohm to 30 Mohm
Voltage measurement from 3 to 600V DC and 3 to 600V AC

  with
± 30,000 digits
Frequency measurement from 300 Hz to 3kHz
DATA HOLD MEMORY FOR UP TO 1200 MEASURED VALUES
Continuity and diode testing
Overload protection

CSA Certification
DKD calibration certificate as standard feature
                                                                                                                                                                                                                                                                ´
      Manual

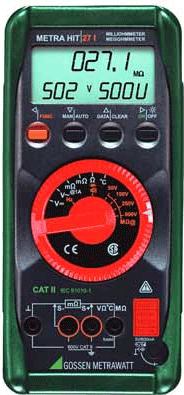

METRAHit 27I

Insulation resistance measurement 30.00 MOhm to 3.000 GOhm
  with adjustable test voltage of 50, 100,250, or 500V
Milliohmmeter
  3.000 mOhm to 300.00 mOhm with 1A measuring current and
  30.00 mOhm to 30.00 Ohm with 200 mA measuring current
  ( 16A, 30 sec )

Resistance:30 Ohm to 30 MOhm
Temperature: -200.0 to + 850.0
°C  ( Pt100/Pt1000 )
Continuity and diode testing
Min-Max measured value storage and DATA hold
IR interface

CSA certifikation
DKD calibration certificate as standard feature
LCD including background illumination
Provided with 3 rechargeable NiMH batteries and a charger as standard
  equipment

                                                                                     ´        Manual

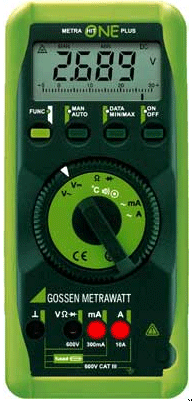

METRAHit  ONE Plus

Resolution: ± 3100 digits and analog ber graph
Patented autpmatic blocking sockets ( ABS )
Voltage: 30mV to 600VDC and 3 to 600VAC
Current: 300mA to 10ADC  ( 16A. 30sec ) and 3mA to 10AAC (16A, 30 sec)
Resistance: 30 Ohm to 30 MOhm
Temperature:-200.0 to + 850.0° C ( PT100/Pt1000 )
Continuity and diode testing
Min-Max measured value storage and DATA hold
IR interface

CSA certifikation
DKD calibration certificate as standard feature



                                                                                      ´       Manual

  ˹ҷ | 1 2 3
www.amptron.th.com, www.amptronth.com
9 ྪ 77 ¡ 4 ྪ ǧ˹ͧҧ ࢵ˹ͧ ا෾ 10160
  Tel : 66-2809-5588, Fax : 66-2809-5599 E-mail : sales@amptron.th.com
