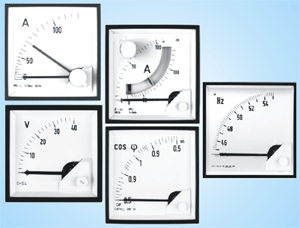

90 degree
|
MOUNTING
Mounting is
possible through S type screw clamps
which can be mounted on any two opposite sides of
the
meter either
left and
right or
top and
bottom
All fasteners are
resistant to excessive vibration and
shock.The "S" type screw
clamp supplied as standard
equipment is suitable for control
panel of thickness≤
25mm
CONVENIENT HOUSING FOR EASY MOUNTING
Housing design is so convenient that the installation
is possible in various grid system. The instrument is
suitable for mounting in Control Panel, Switch Boards
and machine
consoles even up
to a
wall
thickness
of 25 mm. Design
facilitate for
mounting meters
in
vertical and horizontal rows in a single cut-out.
รายละเอียด |
240 degree |

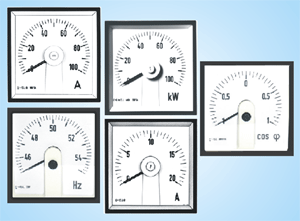

The Panel Meter Series : 240°
The Moving coil
movement used in 240 degree has
pivots of very high hardness. Movement is suspended
between
springloaded sapphire
jewels makes
it
robust.
Movement is
properly shielded
& critically
damped by eddy current
induced in coil former.These
instruments offer several advantages
compare toTaut
Band meters Front glass, Bezel & Dial can be
easily
replaced Size: 144x144 mm, 96x96 mm, 72x72mm,
48x48 mm. Specially designed back cover eliminate
risk of contact
with live parts.
Terminal protection
with back cover conform
to IP 20
as per IEC 529
( DIN 40050 ). The holes on the back cover
facilitate
to check
the voltage
without removing
it Dial
interchangeability feature
even in 240 degree meters
