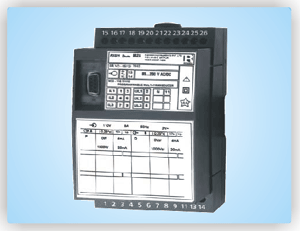

Programmable
multi-transducer
2 or 3 Output
Model :
M20-M30
|
Features
#
Programmable for
specific systems ( 1/3 phase
2/3/4 wire )
#
Nominal current programmable from 1 to 6A
#
Nominal voltage prog
Electrical Transducer htmlrammable from 57V to
400V(
Phase-to-neutral ), or 100V to 693 V ( phase-to-phase )
#
Programmable analog outputs ( Current or
Voltage
# Digital outputs can be used for limit value
monitoring energy metering
#
Programmable Bend Characteristics
# Programmable Response time
#
Universal ( AC,DC ) power pack with very wide
tolerance
range or AC auxiliary supply.
# Configurable from a PC or RS 232 interface
รายละเอียด
manual |

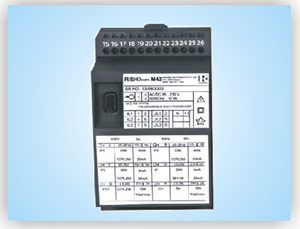

Programmable
multi-transducer
2 or 3 Output
Model : M24- M42 |
Features
#
Programmable for
specific systems ( 1/3 phase
2/3/4 wire )
#
Nominal current programmable from 1 to 6A
#
Nominal voltage programmable from 57V to 400V
(
Phase-to-neutral ), or 100V to 693 V ( phase-to-
phase )
#
Programmable analog outputs ( Current or
Voltage
#
Digital outputs can be used for limit value
monitoring energy metering
#
Programmable Bend Characteristics
#
Programmable Response time
#
Universal ( AC,DC ) power pack with very wide
tolerance
range or AC auxiliary supply.
#
Configurable from a PC or RS 232 interface
รายละเอียด
คู่มือภาษาไทย
manual |

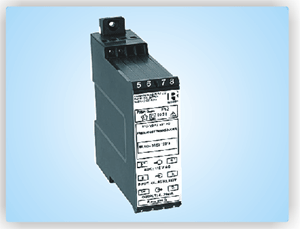

Transducer for
measuring frequency
Model : F12 |
Features
#
Designed and Tested
to meet Requirements of
IEC 688 and
IS 12784
#
Reliable SMD Technology
#
High Insulation Level
#
Higher load Capacity
#
Easy onsite conversion between DIN rail or Panel
Mounting
#
Polycarbonate body, conforming to UL 94-VO
รายละเอียด |

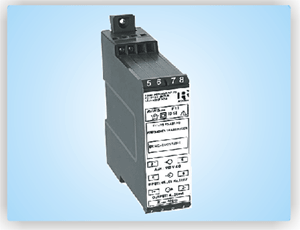

Transducer for
measuring frequency
Model : F11 |
Features
#
Designed and Tested
to meet Requirements of
IEC 688 and
IS 12784
#
Reliable SMD Technology
#
High Insulation Level
#
Higher load Capacity
#
Easy onsite conversion between DIN rail or Panel
Mounting
#
Polycarbonate body, conforming to UL 94-VO
รายละเอียด |

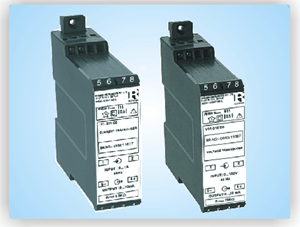

Transducer for AC
Current/AC Voltage
Model : I11 - V11 |
Features
#
Designed and Tested
to meet Requirements of
IEC 688 and
IS 12784
#
Reliable SMD Technology
#
High Insulation Level
#
Higher load Capacity
#
Easy onsite conversion between DIN rail or Panel
Mounting
#
Polycarbonate body, conforming to UL 94-VO
รายละเอียด |

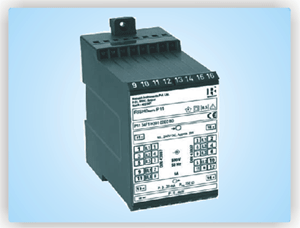

Transducer for active
or reactive power
Model : F11 |
Features
RISH Ducer P11
measures active / reactive power
of a single phase / three phase system with balanced
balanced or unbalanced load by TDM ( Time Division Multiplexing )
principle and converts it into
proportionate load independent DC Current or or DC Voltage. The
design is having negligible effect of
power factor variation
andoutput is accurate at very
low power
รายละเอียด |

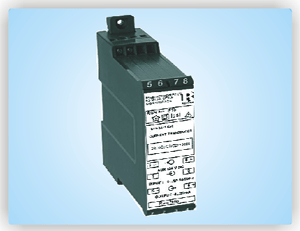

RISH Ducer E15 |
Features
#
Designed and Tested
to meet Requirements of
IEC 688 and
IS 12784
#
Reliable SMD Technology
#
High Insulation Level
#
Higher load Capacity
#
Easy onsite conversion between DIN rail or Panel
Mounting
#
Polycarbonate body, conforming to UL 94-VO
รายละเอียด |

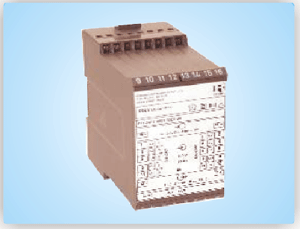

Transducer for AC
current and voltage
Model : E13 |
Features
#
Measuring inputs:
Sine or distorted wave-forms of
nominal input
current and mominal input voltage
#
Measuring output: DC current signal ( load-indep-
endent) or DC
voltage signal (not super-imposed
#
Measuring
principle: Measurement of the zero
crossing interval
#
Electric isolation between all transducer connec-
tion
circuits/Prevents interference voltages and
current s being transmitted
#
Narrow housing, 70mm/Saves space and there-
fore cost
#
Snaps onto a DIN rail screw onto a wall or panel /
Adaptable to
the circumstances at the place of
installation
# Screw
terminals suitable for multistrans or solid
wires / Easy wiring
without problems
#
Two isolated
outputs ( Optional )
#
Electrical
isolation between output 1 and output 2
is 500V
รายละเอียด |

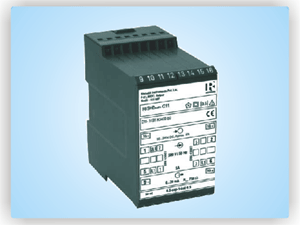

Phase Angle
Transducer ( Power Factor )
Model : C11 |
Features
RISH Ducer
C11 measures the phase angle
between Current and Voltage of a single or three
phase balanced
network having sine waveform. The
output signal. in the
form of load independent DC
Current or Voltage, is proportional
to phase angle
between current and voltage
รายละเอียด |
