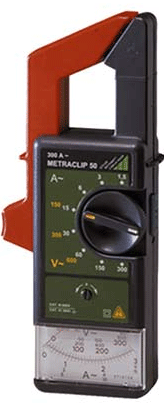

METRACLIP 50
• Alternting current measurement
METRACLIP@ 50: 1.5A ... 300A
METRACLIP@ 54: 15A...3000A
Current to 1200 A continuous
Current to 4000 A intermittent
• Clip opening
METRACLIP@50:
to 28 mm diameter
METRACLIP@60:
to 60 mm diameter
• Alternating voltage measurement: 150V ... 600V
• Measurement value memory
METRACLIP@50: mechanical pointer
locking device
METRACLIP@51:
electrical pointer locking device
• Electrical safety in accordance with IEC 61010
ÃÒÂÅÐàÍÕ´
Manual |
|
 |

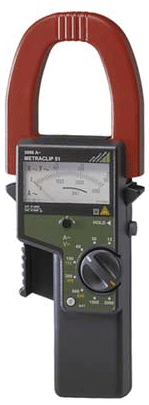

METRACLIP 51
• Alternting current measurement
METRACLIP@ 50: 1.5A ... 300A
METRACLIP@ 54: 15A...3000A
Current to 1200 A continuous
Current to 4000 A intermittent
• Clip opening
METRACLIP@50:
to 28 mm diameter
METRACLIP@60:
to 60 mm diameter
• Alternating voltage measurement: 150V ... 600V
• Measurement value memory
METRACLIP@50: mechanical pointer
locking device
METRACLIP@51:
electrical pointer locking device
• Electrical safety in accordance with IEC 61010
ÃÒÂÅÐàÍÕ´
Manual |
|
 |

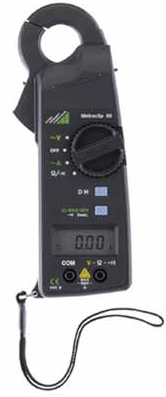

METRACLIP 60
• Clip Function
• Alternating current measurement 10 mA
... 400.0 A
• 2 way clip sensor for cables of up to 24 mm diameter
• Highly accurate measurement of
alternating current
independent of
position of conductor within the clip
thanks to round clip sensor with compensation coils
• Multimeter Functions
• Alternating voltage measurement 100 mV ... 600V
• Resistance measurement
0.1 Ω ....4 MΩ
• Continuity testing with acoustic signal
•
Common Functions and Characteristics
• Easy to read 3¾ place digital display
• Automatic measuring
range selection
• DATA HOLD and Maximum/Minmum display ÃÒÂÅÐàÍÕ´ Manual |
|
 |

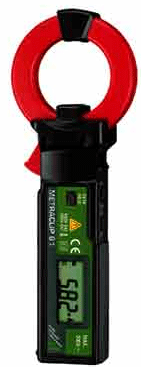

METRACLIP 61
• DATA HOLD and maximum-minimum display
• Leakage current and charging current
measurement
• Digital and bar graph display
• 2 measuring ranges: 30 to 300 mA and
30 to 300 A
• Insensitive to external magnetic fields
• Clip opening: 400 mm
• Compact, handy and lightweight
ÃÒÂÅÐàÍÕ´ |
|
 |

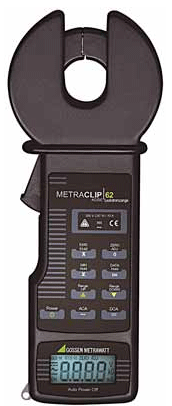

METRACLIP 62
• with a particulary shielded opening
for protectio against outside influences.
For leakage
current measurements with the measurement ranges of 200mA
10A TRMS, respectively AC and DC with Hall Sensor. With
an automatic zero
position.
•
3½
place LCD digital display
•
Accuracy:
± 1% ± 5
Digit ( 50 / 60 Hz )
• Switching between DC and AC
measurement
• Robust case
• In synthetic material bag
|
|
 |

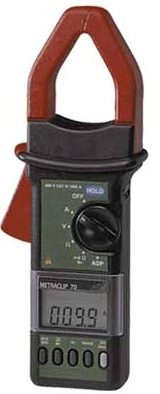

METRACLIP 70
• Clip Functions
• Alternating current measurement 200 mA ...
1000 Aeff
• Direct current measurement 200 mA ... 1400 A
•
Multimeter Functions
• Alternating voltage measurement 200mV ... 600 Veff
•
Direct voltage measurement 200 mV ... 600V
• Resistance measurement 0.5 Ohm ... 4
MOhm
• Acoustic continuity test
• Diode test
• Frequency measurment 1.00 Hz ... 4 kHz
ÃÒÂÅÐàÍÕ´ |
|
 |

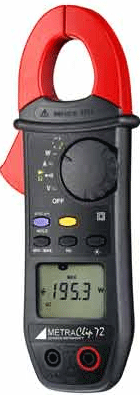

METRACLIP 72
• Clip - on Current measurement:
A AC RMS and DC ( automatic or manual switching )
• Multimeter Functions
• V ( AC RMS and DC )
Ω Resistance and
continuity testing:
Indication if a programmable threshold is fallen short of
Diode test
• Additional measurements:
METRAClip
72 : Frequency ( Hz )
Power ( W ), power factor,
ohase sequence ( 2- wire connection )
Inrush function:
tracking of rapid current changes
METRAClip
75 : Temperature in
°C
or
°C
with type K thermocoule ( accessory )
• Compact
and user-friendly
One-hand operation and illumininated digital display
•
Extremely safe thanks to CAT lll 600V
ÃÒÂÅÐàÍÕ´ Manual |
|
 |
METRACLIP 73
• Cilp-on current measurement:
•
A TRMS AC, AC and DC, DC
•
METRAClip
73 : to 200A AC, to 300 A
DC
•
METRAClip
74 : to 2000A AC and DC
• Mutimeter functions:
• V ( TRMS AC, AC and DC, DC )
Ω ( resistance and continuity
• Measurements in single and 3-phase systems:
Active ,
reactive and apparent power,
active energy ( consumption measurement in kWh )
Power factor ( determination of compensating capacities )
crest
factor for current and voltage
frequency ( Hz ), phase sequence
• Easy Operation
- All measuring functions can be selected diretly with the
rotary switch
- Large LCD panel with double digital
display
• Extremetly safe thanks to CAT IV 600V
• Weight with batteries 260 g
ÃÒÂÅÐàÍÕ´
Manual |
|
 |

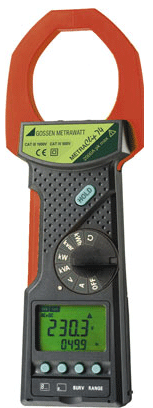

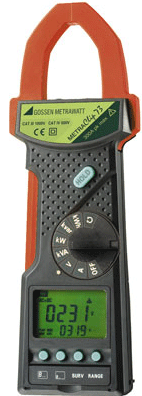

METRACLIP 74
• Clip Function
• Alternating current measurement 0,1
.. 2000A AC, AC+DC TRMS
• Direct current measurement 0,1 ... 2000A DC
•Multimeter Functions
•
Direct voltage measurement ... 1000 V
DC
• Altermating voltage measurement ...
750 V AC, AC+DC TRMS
• Frequency measurement ... 2kHz
• Continuity / buzzer < 30 Ohm
• Resistance ... 2000 Ohm
• Power Measurement
• Active, reactive and apparent power
200 kW/kVar/kVA
• Power factor 0...1
• Energy ... 2000 kWh
• Additional Funtions
• Phase sequence
•
Additional Technical
Data
• Clip opening 65 mm diameter, 22 x 64
mm
• Overvoltage category CAT IV @ 600V
• Digital display 3000 digit
• Sampling rate 2/s
• Power supply 9V/6 LF22
• Dimensions 285 x 90 x50 mm
• Weight with batteries 610 g
ÃÒÂÅÐàÍÕ´
Manual |
|
 |

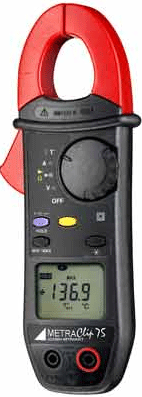

METRACLIP 75
• Cilp Function
•
Direct/alternating current measurement 0,2 .. 400 A DC/AD RMS
•
Multimeter Function
• Direct/alternating voltage measurement 0,2 ..600 V DC/AC RMS
• Frequency range ... 1 kHz
• Continuity / buzzer 1 ... 40 Ohm
•
Resistance 0,2 ... 4000 Ohm ( 2 ranges )
• Additional Functions
• Digital display 4000 digits
• MIN MAX and HOLD storge
• Additional Technical Data
• Clip opening < 26 mm diameter
• Overvoltage category CAT III @ 600V
• Protection IP 40
• Accuracy typ. 1% + 2
• Power supply 9V / 6 LF22
• Dimensions 70 x 193 x37 mm
• Weight with batteries 260 g
