Programmable
multi-transducer
2 or 3 Output
Model :
M20-M30
|
Features
#
Programmable for
specific systems ( 1/3 phase
2/3/4 wire )
#
Nominal current programmable from 1 to 6A
#
Nominal voltage prog
Electrical Transducer
htmlrammable from 57V to 400V
(
Phase-to-neutral ), or 100V to 693 V ( phase-to-
phase )
#
Programmable analog outputs ( Current or
Voltage
# Digital outputs can be used for limit value
monitoring energy metering
#
Programmable Bend Characteristics
# Programmable Response time
#
Universal ( AC,DC ) power pack with very wide
tolerance
range or AC auxiliary supply.
# Configurable from a PC or RS 232 interface
รายละเอียด
|
Programmable
multi-transducer
2 or 3 Output
Model : M24- M42 |
Features
#
Programmable for
specific systems ( 1/3 phase
2/3/4 wire )
#
Nominal current programmable from 1 to 6A
#
Nominal voltage programmable from 57V to 400V
(
Phase-to-neutral ), or 100V to 693 V ( phase-to-
phase )
#
Programmable analog outputs ( Current or
Voltage
#
Digital outputs can be used for limit value
monitoring energy metering
#
Programmable Bend Characteristics
#
Programmable Response time
#
Universal ( AC,DC ) power pack with very wide
tolerance
range or AC auxiliary supply.
#
Configurable from a PC or RS 232 interface
รายละเอียด |
Programmable
universal transmitter
Model : V604 |
Features
#
Input variable (
Resistance, DC current, DC
voltage
Potentiometer ) and all measuring ranges
programmed using
PC.
# Output
signal range and characteristics ( linear/
bent/live zero )
are programmed using PC and
the type of output
signal ( current or voltage ) on
EN 61010
#
Measured variable
data available at the
programming
interface.
programmed using
PC.
#
Measured variable and signals can be viewed on
site using a
PC.
รายละเอียด
|

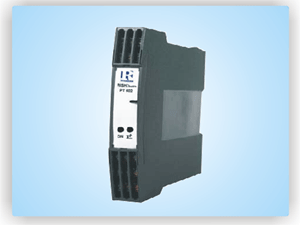

Transmitter for PT
1 or 2 channels
Model : PT602 |
Features
#
Measuring ranges
configurable with DIP switch
and potentiometer
# Non-standard
user-specific ranges available
#
Red LED's indicator
: an open or short-circuit
#
Electric isolation
between input & output 2.3 kV
and power
supply and all other circuits 3.7 kV-
fulfill EN 61010
#
Universal ( DC/AC )
power supply
รายละเอียด
|
Isolating amplifier
unipolar/bipolar
2 channels
Model : TV808 |
Features
#
Electric Isolation
between input, and power
supply,
prevents falsified measurement due to
spurious
potentials
#
Flexibility provided by more than 250 different
input
and output combinations selected by simply
positioning
soldered jumpers, helps in reduced
stocking.
#
Processes unipolar/bipolar
and live zero signals
Provision for
raising the burden and signal
conversion Green
LED signals device in
operating condition.
#
High Electrical Insulation between input and
output
2.3kV, and power supply versus all other
circuits
3.7kV.
รายละเอียด |
